Command Line

create

Running this command will guide you through creating a new plugin project. You can set the project's name, version number, and basic structure through a series of prompts. The generated project will include initial configuration files and file structure to facilitate subsequent development.

Example

dpt create

After using the above command and completing the plugin basic information prompts, the command will:

• Pull the plugin file template.
• Write the user-input basic information into the template.
• Automatically install the dependencies required for plugin development.

If the third step of automatic installation fails, the user can manually install dependencies in the plugin folder:

pnpm install

Note
It is recommended to use pnpm for dependency installation. pnpm has the following advantages over yarn:

• Dependency sharing: Duplicate dependencies can be shared using symlinks, reducing the disk space occupied by plugin dependencies.
• Parallel downloads: Dependencies can be installed faster by sending HTTP requests in parallel.

dev

Start the development server and synchronize the code to the real device for debugging. After running dpt dev, the system will start a Webpack development server and establish a connection with the real device based on the dpt.json configuration file. You can choose whether to debug Lua scripts on the real device. If debugging is selected, the system will synchronize the code to the device via SFTP and monitor file changes. Whenever the Lua script changes, the system will automatically update the files on the device and reload the plugin.

Example

dpt dev

dpt.json

Basic configuration information for connecting to the real machine for debugging:

{
  "ip": "192.168.5.1",
  "port": 22001,
  "pluginPort": 22100
}

Field	Description
ip	The real IP of the controller, default is 192.168.5.1 for wired connection.
port	The public service port of the controller, e.g., for obtaining plugin port, installing, and uninstalling plugins.
pluginPort	The HTTP service port number of the current plugin, dynamically updated, and will be dynamically obtained when the plugin is used, corresponding to the port number mapped by the httpAPI.lua module.

Additionally, the synchronization of Lua files uses the SFTP protocol. The specific connection parameters can be found in the .dobot/.sftprc file, which generally does not need to be modified by developers.

Page Preview

This command internally uses Webpack for bundling and supports Webpack's hot update mechanism:

• http://localhost:8080/Main - The main control interface of the plugin, displayed when the plugin is clicked after installation.
• http://localhost:8080/Toolbar - Display of the plugin's toolbar interface.
• http://localhost:8080/Blocks - Custom display interface when clicking on blocks.

lua

Run Lua scripts and select the target Lua file for execution in the project. This command will list all Lua files in the ./lua directory and allow you to select a target file to execute. Once selected, the command will run the script using lua54.exe, outputting the execution result. This feature is suitable for quickly testing and running Lua code during development.

Example

Suppose your project structure is as follows:

/your-project
│
└── lua/
   ├── script1.lua
   ├── script2.lua
   └── init.lua

• After running dpt lua, you will see the following prompt:

  Please select target lua file:
  ❯ script1.lua
    script2.lua
    init.lua

• After selecting script1.lua, the tool will execute the following command:

  lua54.exe -l init /your-project/lua/script1.lua

• The script will execute in the .dobot/lua/ directory, and the output will be displayed in the command line.

gui

Configure the project through a graphical user interface (GUI). Running this command will start a web GUI interface that allows users to configure the project through a browser. This interface supports real-time preview and interactive operations. If the --dev option is specified, the command will start the GUI in development mode, suitable for debugging and development scenarios.

Example

dpt gui

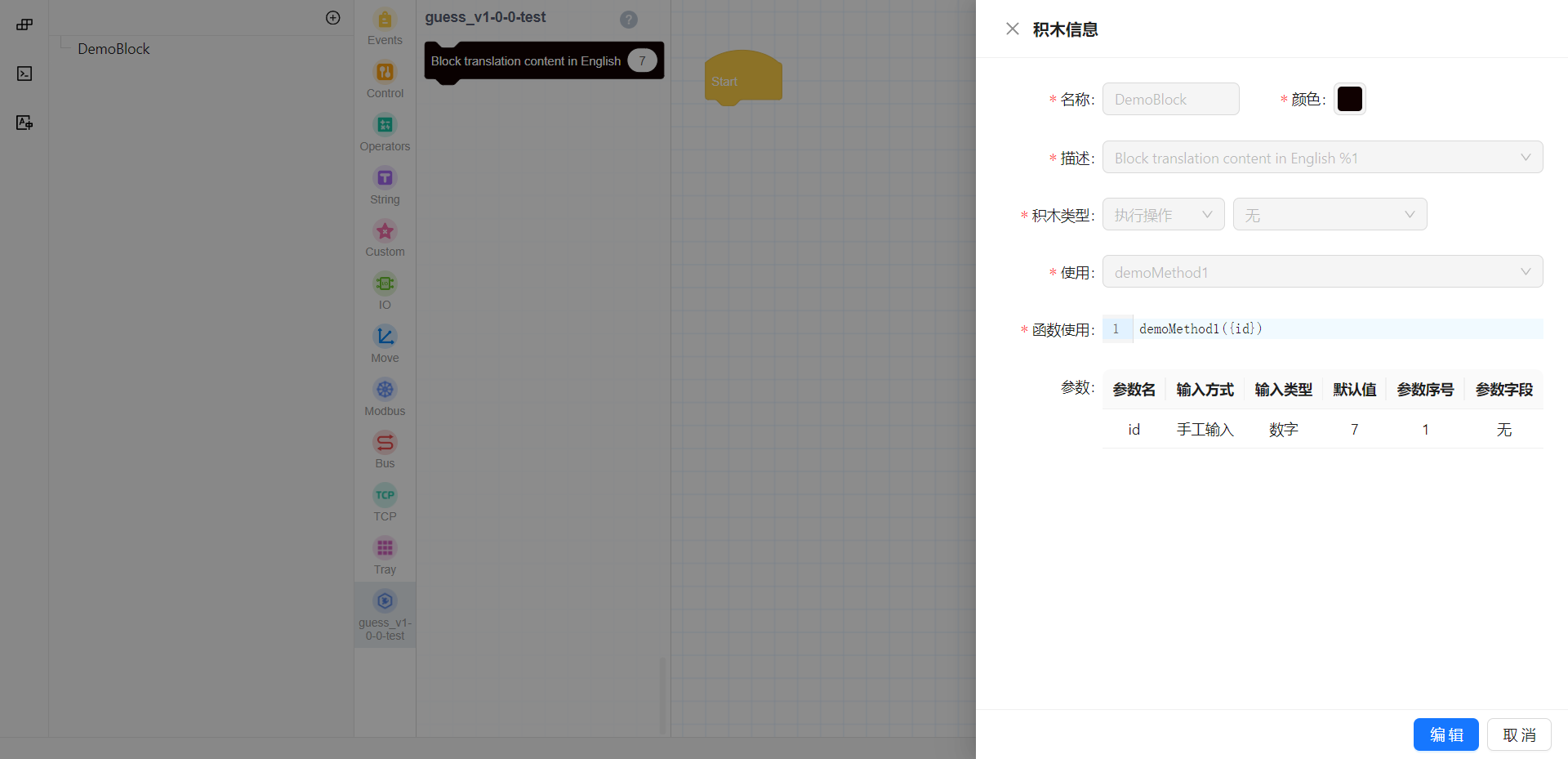

• Management panel for block programming configuration files



• Management panel for function programming configuration files



• Editing panel for translation resources of configuration files



build

This command is used to package the project code and generate the final plugin release version. During packaging, the code will be optimized based on the project's Webpack configuration, and the final publishable files will be generated.

Example

dpt build

During the build process, the first-level .tsx files in the ui/pages path will be built into corresponding pages:

• Main.tsx corresponds to the main page of the plugin.
• Toolbar.tsx corresponds to the plugin toolbar.
• Blocks.tsx corresponds to the plugin's block pop-up page.
• Other first-level custom pages will also undergo similar builds, so developers should pay attention to the naming of .tsx files in the first-level directory of the ui/pages folder.

After the program completes successfully, a dist folder and an output folder will appear in the current folder.

• The dist folder contains the plugin code after this build for developers to check the build results.
• The output folder contains the compressed zip file, with the file name format <plugin name>-<version>.zip, which is the plugin actually imported for use in the client.

The folder structure of uncompressed files after building is as follows:

├── Blocks
│   ├── config.json # Block programming configuration file
│   └── index.html  # Page displayed when clicking on block
├── Main
│   ├── config.json # Basic configuration of the plugin
│   └── index.html
├── Resources
│   ├── document
│   │   └── config.json # Script programming document configuration
│   ├── i18n            # Internationalization translation data
│   │   ├── Deutsch     # German translation
│   │   │   ├── blocks.json  # Block programming translation
│   │   │   ├── config.json  # Basic configuration translation
│   │   │   └── scripts.json # Script programming translation
│   │   ├── English
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   ├── Español
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   ├── Русский язык
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   ├── 日本語
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   ├── 简体中文
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   ├── 繁體中文
│   │   │   ├── blocks.json
│   │   │   ├── config.json
│   │   │   └── scripts.json
│   │   └── 한국어
│   │       ├── blocks.json
│   │       ├── config.json
│   │       └── scripts.json
│   └── images
│       └── pallet.svg
├── Scripts
│   └── config.json # Script programming configuration file
├── Toolbar
│   ├── config.json
│   └── index.html
├── daemon.lua  # Lua entry file, daemon
├── httpAPI.lua # Data interaction module between controller and GUI, handles HTTP requests from the GUI interface
├── userAPI.lua # Modules for block programming and script programming, corresponding to the actual methods for controlling the end of the robotic arm
└── utils
    └── await485.lua
