Adapting TCP Devices

This example shows how to use the dobot-plus skill in an AI Agent to adapt external devices that communicate over TCP/IP. Unlike Modbus protocols, TCP devices typically use custom messages (strings or binary frames). The Skill generates plugin scaffolding from message formats and function descriptions in Requirements.md—you only need to prepare the document and invoke /dobot-plus in the IDE.

Example Workflow

Environment Setup

Confirm the following before development. See Development Environment for more detail.

Dependency	Version / Notes
Node.js	v20 or later
IDE	Supports Agent Skills (e.g. Cursor)
@dobot-plus/cli	Global install; provides the `dpt` command
@dobot-plus/skill	Global install; provides the `/dobot-plus` skill

Install:

npm install -g @dobot-plus/cli @dobot-plus/skill@latest

Verify:

node -v    # Should print v20.x or later
dpt -v     # Confirm CLI works

After install, the Skill is deployed to ~/.agents/skills/dobot-plus. Enable Agent Skills in your IDE settings to use it.

Writing Requirements.md (General Requirements)

The Skill does not create or modify Requirements.md. You must write a complete TCP communication document in the project root.

Required Content

Category	Description
Communication protocol	Protocol type TCP, connection role (client / server)
IP address	Device or host IP, e.g. `192.168.5.1`
Port number	TCP port, e.g. `123`
Message format	Send templates, response format, delimiters, terminators (e.g. `\n`)
Function semantics	Each atomic operation exposed externally (send command / read response / status query)
Operation flow	Typical interaction sequence (connect → send → wait for response → disconnect or keep alive)

Recommended Outline

Device overview
Communication protocol (TCP params: IP, port, connection mode)
Message protocol (command format, response format, examples)
Function list (split into atomic operations)
Operation flow
Version info and safety notes

Split functions into atomic operations whenever possible—each function should do one thing. Use camelCase Verb+Noun naming, e.g. MoveUp, GetPosition.

TCP vs Other Protocols

Item	Custom TCP	Modbus RTU / TCP	I/O control
Protocol field	`"protocol": "tcp"`	`"protocol": "modbus-*"`	`"protocol": "io"`
Connection params	IP address, port	Register addresses + comm params	DI/DO port numbers
Underlying API	`sendRequest` (TCPWrite/Read)	Register read/write	`DI` / `DO`
Document focus	Message format and interaction flow	Register map, bit fields	Port numbers and level semantics
Generates modbus.lua	No	Yes	No

TCP API reference: TCP commands. For manual TCP plugin development, see Basic TCP/IP example.

Generate with AI

If you have device communication specs or vendor manuals, ask a general-purpose AI model to turn TCP message definitions into Requirements.md, review it, and save it in the project root.

Sample AI prompt:

You are an industrial device TCP communication documentation assistant. From the materials I provide, produce a Requirements.md document that meets the requirements below.

## Output requirements
1. Output Markdown only from my materials; do not invent IP, port, message formats, or timing
2. Mark uncertain items as "TBD"; do not guess
3. Keep function names in English camelCase, e.g. MoveUp, GetStatus

## Must include
1. Device overview
2. Communication protocol: TCP params (IP address, port, client/server role)
3. Message protocol: send format per command, expected response format, delimiters and terminators
4. Function list: one atomic operation per item, with message content and return value parsing
5. Typical operation flow (e.g. connect → send command → wait for response)
6. Version info and safety notes

## Function splitting rules
- One action per function; camelCase Verb+Noun naming
- Do not merge: MoveAndStop, ControlDevice, etc.
- Separate send and read functions
- Read functions must define return value meaning

---
Source material:
[Paste communication protocol / manual sections / message examples]

After generation, verify manually:

IP address and port match on-site device settings
Message format (delimiters, terminators) matches the device manual
Response parsing rules are clear
Functions are split into atomic operations

Save the file as Requirements.md in the project root, then invoke /dobot-plus in an IDE Agent session.

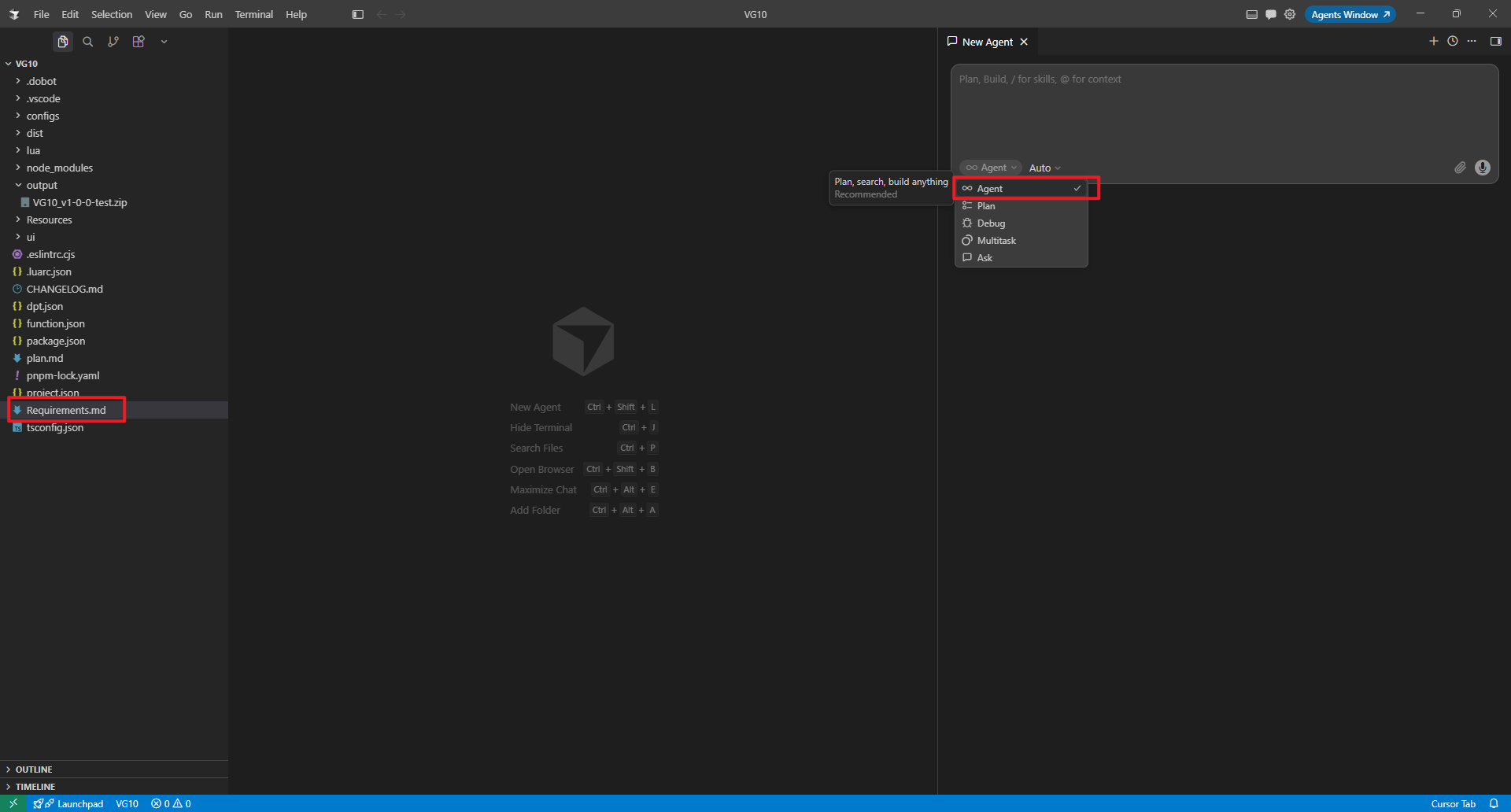

Select Agent mode:

Agents

Invoke the /dobot-plus skill:

Requirements.md

Device Examples

The example below controls an external lift column over TCP/IP: send position commands and read responses. Run dpt create first, then write Requirements.md.

Lift column TCP control

Create project:

dpt create

Example prompts:

$ dpt create
? Please input plugin name: lift
? Please input plugin description: A plugin demo for lift control via TCP
? Please input plugin version: 1-0-0-test
? Please input device IP: 192.168.5.1

Then:

cd lift

Full lift TCP Requirements.md example

# Lift Column TCP Control

> Send position commands to an external lift column over TCP/IP and read device responses.

## 1. Device overview

This plugin controls an external lift column using custom TCP messages—no Modbus or I/O communication.

## 2. Communication protocol

| Item | Description |
| --- | --- |
| Protocol | TCP |
| Connection role | Robot acts as **TCP client** |
| IP address | 192.168.5.1 |
| Port | 123 |
| Message encoding | ASCII string, terminated with `\n` |
| Lua API | `sendRequest(msg)` to send and receive |

## 3. Message protocol

### 3.1 Move to absolute position

- **Send format:** `moveTo_absolutePosition,<position>\n`
- **Parameter:** `position` is an integer (mm or device-specific unit)
- **Response:** Device returns a confirmation string (mark as TBD if unknown)

**Examples:**

| Action | Send message |
| --- | --- |
| Move to 100 | `moveTo_absolutePosition,100\n` |
| Move to 50 | `moveTo_absolutePosition,50\n` |

## 4. Functions

### 4.1 MoveTo — move to specified position

- Action: call `sendRequest("moveTo_absolutePosition," .. position .. "\n")`
- Parameter: position (number, target position)
- UI: input + button

### 4.2 MoveUp — move up

- Action: add a fixed offset (e.g. +50) to current position, send `moveTo_absolutePosition,<newPosition>\n`
- UI: button

### 4.3 MoveDown — move down

- Action: subtract a fixed offset (e.g. -50) from current position, send `moveTo_absolutePosition,<newPosition>\n`
- UI: button

## 5. Operation flow

1. Establish TCP connection on plugin load (IP + port from `function.json` protocol config)
2. User clicks "Move up" or "Move down"; send the corresponding position command
3. Wait for device response (`sendRequest` reads automatically)
4. Update UI state based on response

## 6. Safety notes

- Confirm IP and port match the device manual before operation
- Position commands must stay within the device travel range
- If there is no response for a long time, check network connectivity and device status

After generation, verify:

IP and port in Requirements.md match on-site settings
Message format matches the device protocol document
Each function describes a single operation

Using the Agent Skill

Open the plugin project and run this slash command in IDE Chat:

/dobot-plus

skill demo

Import and Use

Open DobotStudio Pro → Dobot+ plugin manager
Uninstall any same-name plugin first
Import the zip from output/
Use the plugin from the nav bar (UI, blocks, scripts)

Package name pattern:

<plugin-name>_v<major>-<minor>-<patch>-<status>.zip

See Quick Start — Build & Use for screenshots and details.

FAQ

Manual build when Agent packaging fails

When development and debugging are complete, run from the project root:

dpt build

Outputs:

dist/ — built plugin sources for inspection
output/ — zip package named <plugin-name>-<version>.zip for import

Skill reports missing Requirements.md

Ensure Requirements.md is in the project root with IP, port, message format, and function definitions. The Skill will not create it for you.

TCP communication fails

Confirm device IP and port match Requirements.md; controller and device must be reachable on the network
Confirm message format (delimiters, terminators) matches the device protocol
Verify IP in dpt.json when using dpt dev with a real device
See TCP commands for connection and read/write troubleshooting

Poor Agent results

Clarify message format and response parsing in Requirements.md
Ensure functions are split into atomic operations (one action per function)
Check the Agent model: use GPT-5.4 or newer in VS Code Copilot; Auto mode in Cursor generally works well
